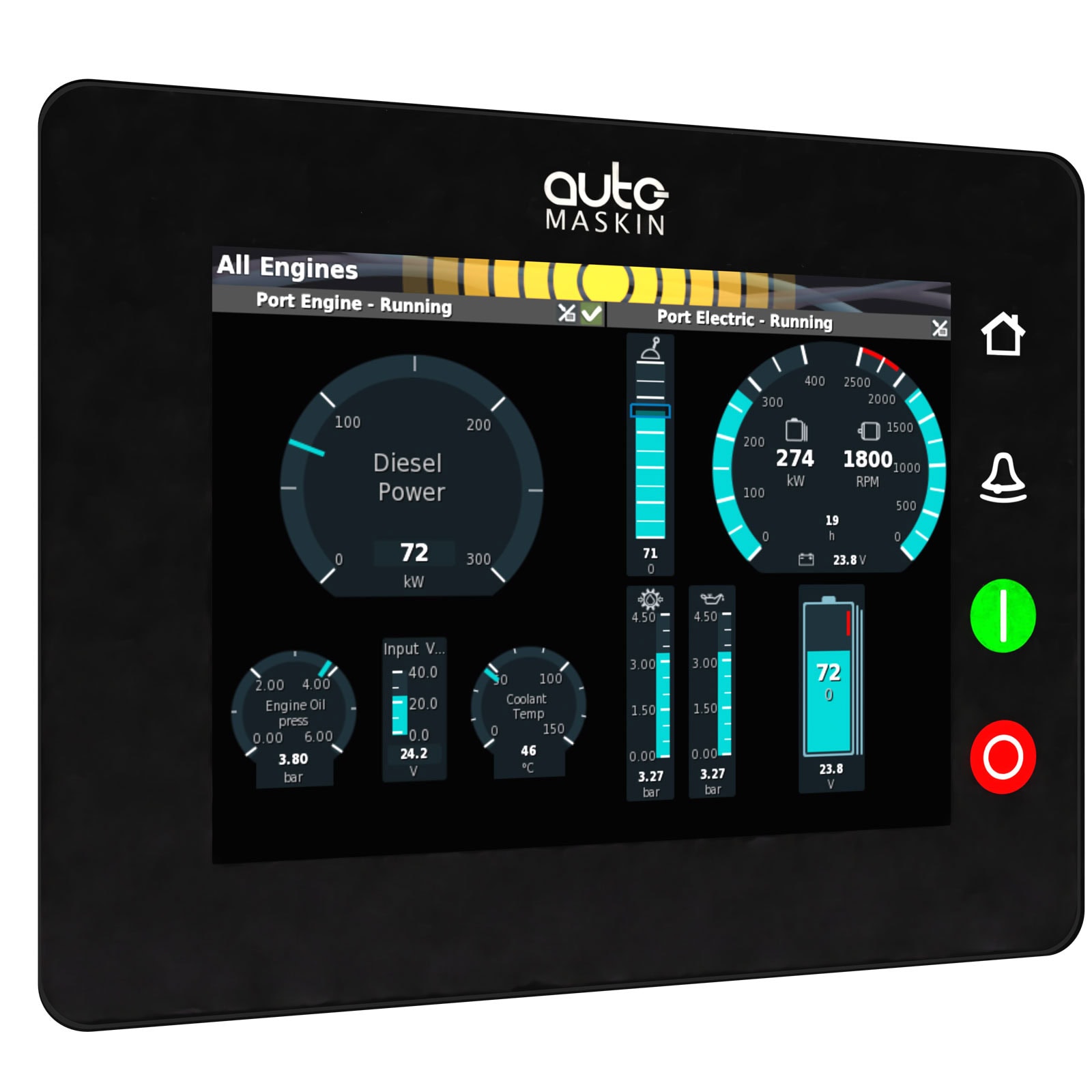

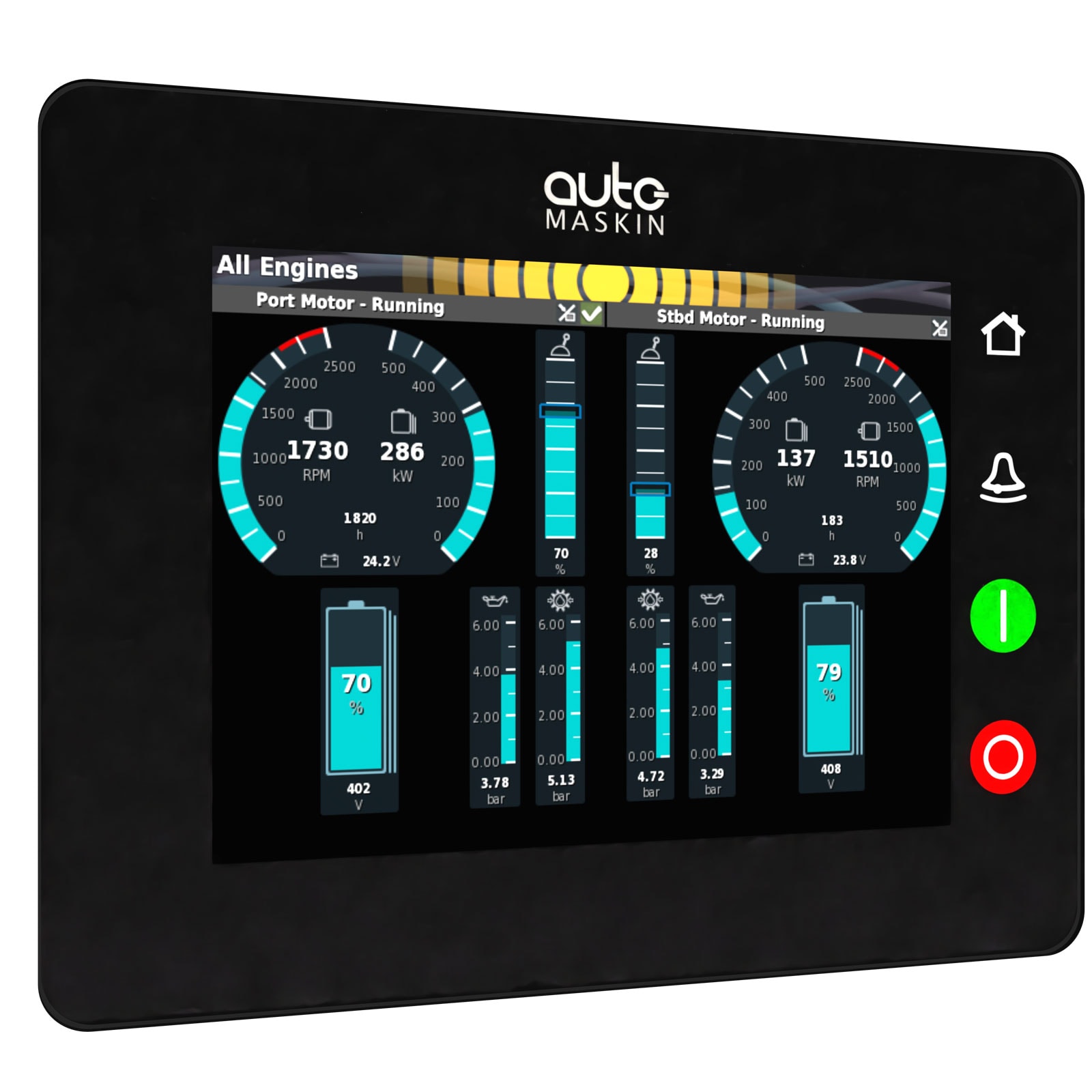

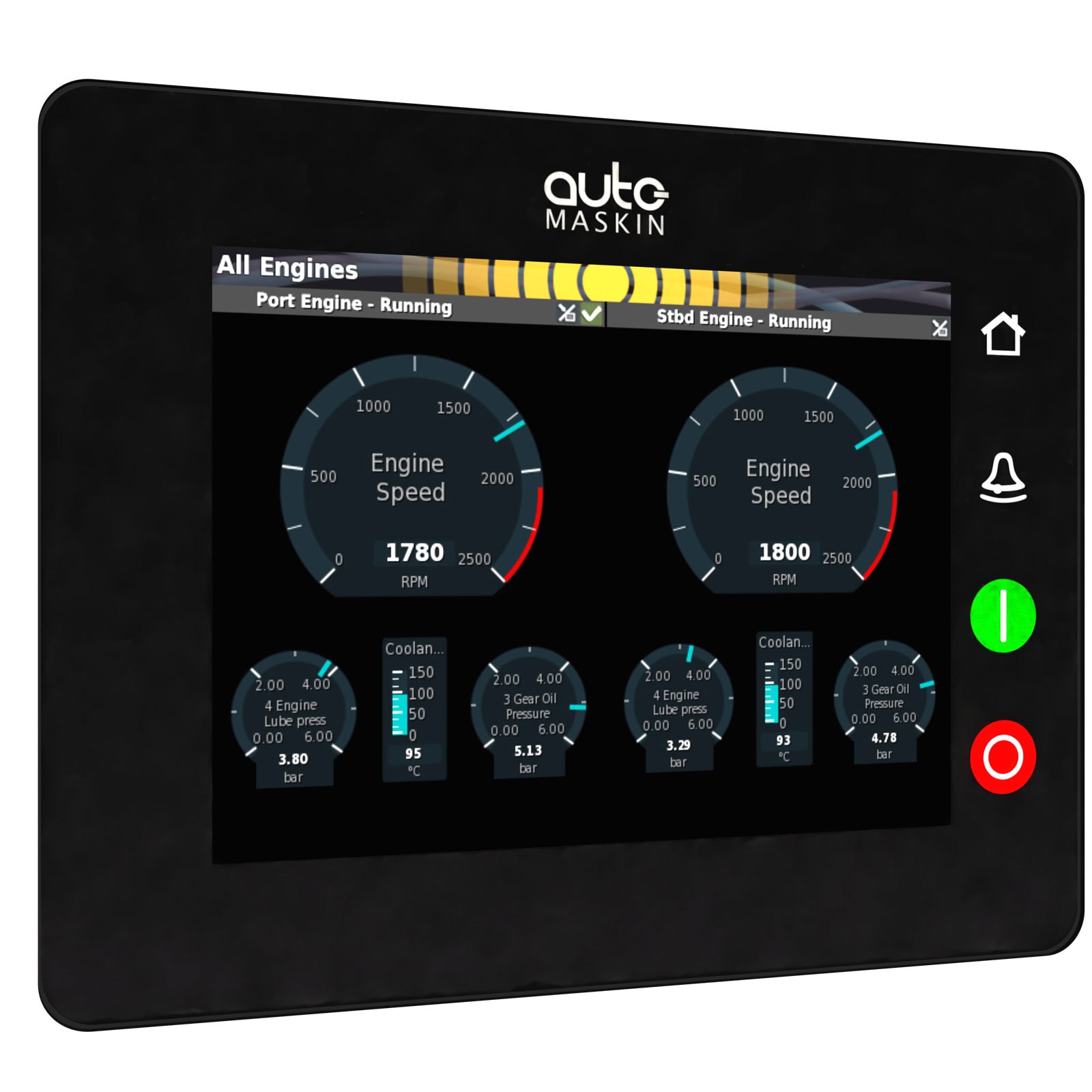

The RP 220E is a high resolution, sunlight capable remote touchscreen panel for twin-engine configurations with 200 or 400 series of Marine Pro engine controllers (DCUs). This responsive touch screen panel is fully weather protected both front and rear, with an IP56 environmental qualification and weather tight connectors.
Cyber Security certified.
The panel connects two DCUs using only standard Ethernet cable, and will automatically “find” any DCUs that are connected to the network. No configuring, no setup, no hassle. Additionally, when connected, the RP 220E will update itself with any DCU configuration changes automatically, providing seamless consistency across all panels.
There is no practical limit to how many RP 220E remote panels that can be connected to one engine controller.
Note! A Basic Harness Kit (P/N: 1006946) including one prewired Deutsch DT-connector with a 2 m power cable and three sealing blind plugs for easy installation is available and if needed, this must be ordered separately.
The RP 220E can be attached to the following products:
Note! When replacing an old Marine Pro unit with a new we recommend to update the Firmware of other vital components as well.
| Size | w 162 x h 130 x d 67mm |
|---|---|
| Cut out | w 155 x h 123 mm, Access depth 90 mm |
| Screen | 262144 colors, 5.7", Resolution 640 x 480 pixels |
| IP | IP56 |
| Power Supply , Vcc | 12/24 VDC, Min 8 VDC, Max 32 VDC |
